Four-Side moulder series M20A

Category: M20A

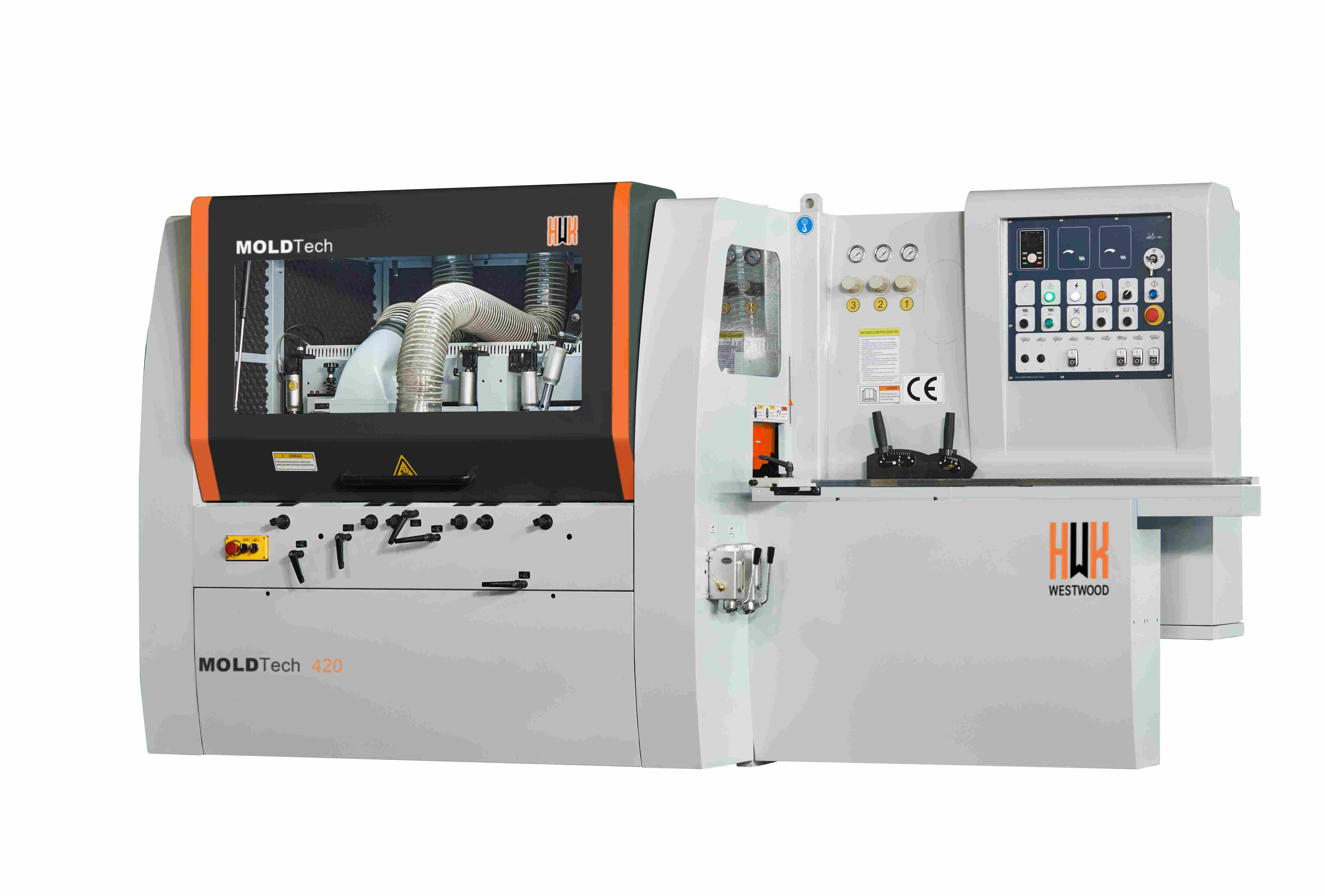

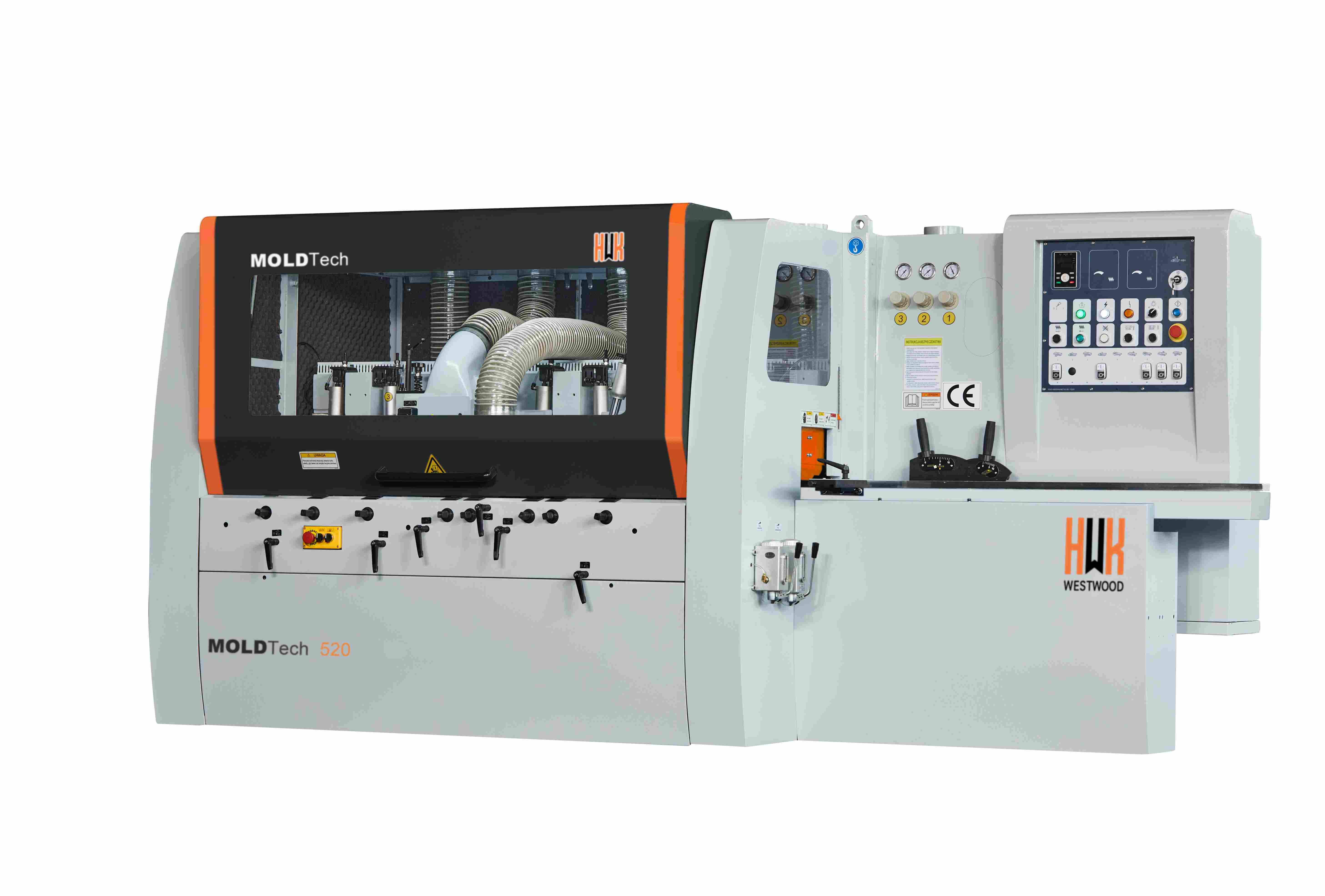

Model: WMM420A, WMM520A, WMM620A，WMM620AR



1.Professional solution for processing Medium hard wood strip, MDF strip, HDF strip, floor, doors, solid wood furniture and Square boards.

WMM20A Series Four-side moulder

Specification & type

WMM620A

WMM620AR

WMM520A

WMM420A

Working Width
(mm)

Min.

20

20

20

20

Max.（max. cutting circle of 130mm）

200

200

200

200

Working Thickness
(mm)

Min.

8

8

8

8

Max.（max. cutting circle of 160mm）

120

120

120

120

Number of spindles

6

6

5

4

Speed of spindles(r/min)

6000

6000

6000

6000



Cutting circle(min~ max)
(mm)

First Bottom Spindle

Ø110 ~ Ø145

Ø110 ~ Ø145

Ø110 ~ Ø145

Ø110 ~ Ø145

Right side Spindle

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Left side Spindle　

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Second right spindle

~~~~~

Ø110 ~ Ø180

~~~~~

~~~~~

First Top Spindle

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Second Top Spindle

Ø110 ~ Ø180

~~~~~

~~~~~

~~~~~

First Bottom Spindle

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

~~~~~

Spindle diameter (mm)

Ø40

Ø40

Ø40

Ø40

Basic Motor powers
(kW)

First Bottom Spindle

5.5 kW/7.5HP

5.5 kW/7.5HP

5.5 kW/7.5HP

5.5 kW/7.5HP

Right side Spindle

4 kW/5.5HP

4 kW/5.5HP

4 kW/5.5HP

4 kW/5.5HP

Left side Spindle　

5.5 kW/7.5HP

5.5KW/7.5HP

5.5 kW/7.5HP

5.5 kW/7.5HP

Second right spindle

~~~~~

5.5 kW/7.5HP

~~~~~

~~~~~

First Top Spindle

7.5kW/10HP

7.5kW/10HP

7.5kW/10HP

7.5kW/10HP

Second Top Spindle

5.5 kW/7.5HP

~~~~~

~~~~~

~~~~~

First Bottom Spindle

5.5kW/7.5HP

5.5 kW/7.5HP

5.5kW/7.5HP

~~~~~

Feed

4kW/5.5HP

4kW/5.5HP

3kW/4HP

3kW/4HP

Feed beam rise & fall

0.75kW/1HP

0.75kW/1HP

0.75kW/1HP

0.75kW/1HP

Total motor power (kW)

38.6kW/52.5HP

38.6kW/52.5HP

32.1kW/43.5HP

26.6kW/36HP

Feed speed (mm) (Inverter feed)

6 ~30

6 ~30

6 ~30

6 ~30

Dust outlet diameter (mm)

Ø130

Ø130

Ø130

Ø130

Overall machine dimensions approx (L×W×H) (mm)

4310×1620×1700

4250×1620×1700

3830×1620×1700

2980×1620×1700

Weight (tons approx) (T)

4

3.8

3.5

3



Note: Any variation to the specification above mentioned will not be further notified since the product specification and designs
keeps on changing

WMM20A Series Four-side moulder Outstanding character

1.Inverter feed speed of 6~30m/min

2.Individual motor to each spindle to ensure maximum cutting

3.All spindle adjustment are carried out in front of the machine for convenience

4.Hard chromed treatment has been adopted for the durability of the work table surface.

5.Chain-wheel box is equipped for advancing the smooth feeding of short piece availably

6.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.

7.The first-stage pressing wheel and the short material device are equipped with a lifting cylinder, which can return and feed the material at any time according to the processing requirements.

8.Multi-group bottom driving roller to improve the feed effect .

9.Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness

10.Manual lubrication to the work table and carriage , easy to centralized control and shortcut

11.Adopting electric component from international class with steady quality

12.Sealed safety enclosure avoid splashing of wood chips and insulate the noises , it is good for the safe protection.
