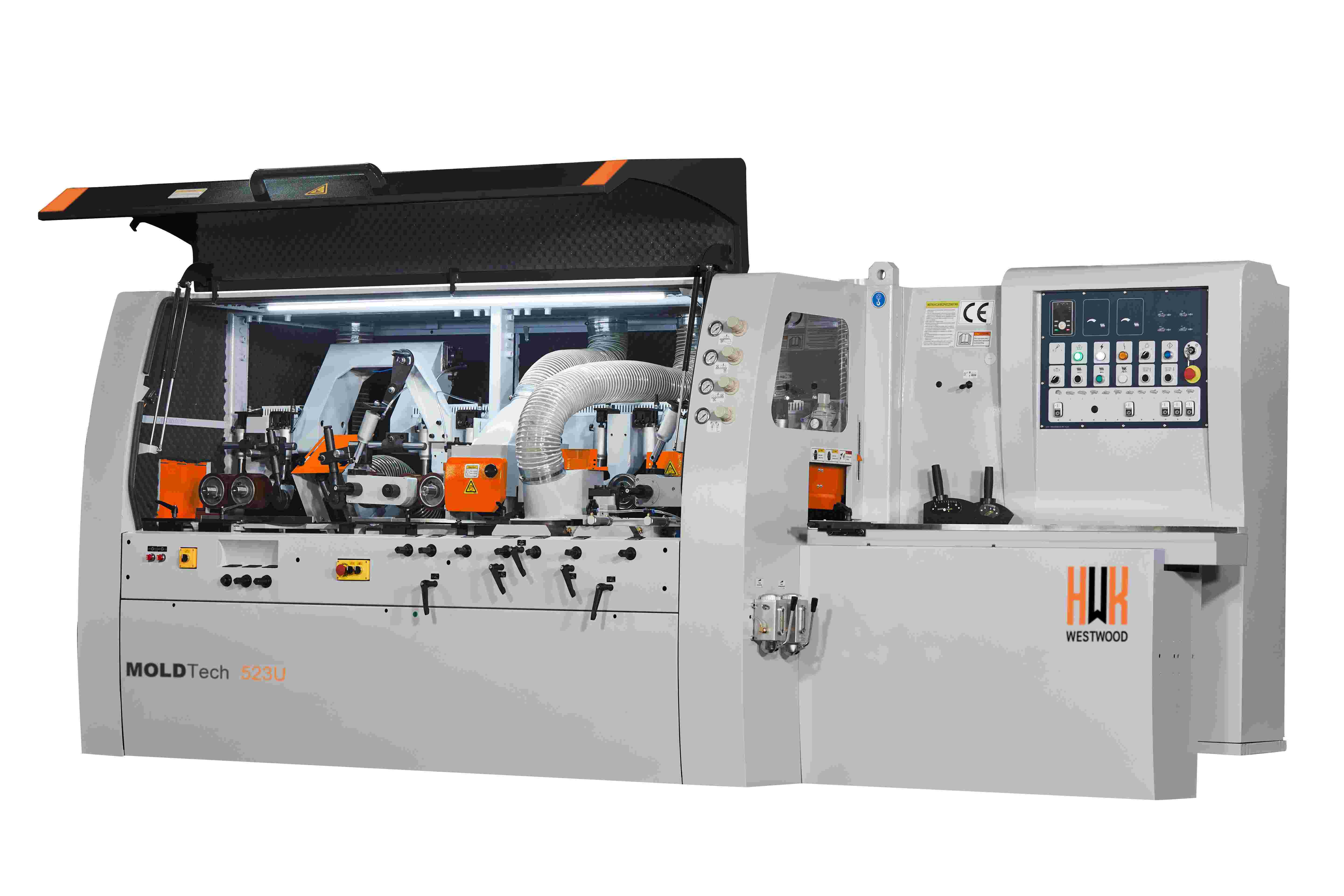

Four-Side moulder series M23AU

Category: M23AU



Model: WMM523AU, WMM623AU, WMM723AU



1.Professional solution for processing hard wood strip, floor, doors and large cutting capacity strips.

WMM23UA Series Universal Four-side moulder

Specification & Type

WMM723AU

WMM623AU

WMM523AU

Working

Width (mm)

Min.

20

20

20

Max.

230

230

230

Working

Thickness (mm)

Min.

8

8

8

Max.

135

135

135

Number of spindles

6+1

5+1

4+1

Speed of spindes(r/min)

6000

6000

6000

Cutting circles

(min~max)        (mm)

First Bottom Spindle

Ø110 ~ Ø145

Ø110 ~ Ø145

Ø110 ~ Ø145

Right side Spindle

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Left side Spindle　

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

First Top Spindle

Ø110 ~ Ø180

Ø110 ~ Ø180

Ø110 ~ Ø180

Second Top Spindle

Ø110 ~ Ø180

~~~~~

~~~~~

Second Bottom Spindle

Ø110 ~ Ø180

Ø110 ~ Ø180

~~~~~

Universal spindle

Ø110 ~Ø180

Ø110 ~Ø180

Ø110 ~ Ø180

Max. OD for installing

saw（mm） (.rotation speed

up to 3500r/min.)

Ø350

Ø350

Ø350

Max. Length for installing

cutter block（mm）

240

240

240

Spindle diameter

(mm)

Ø40

Ø40

Ø40

Rotation angle for

universal spindle

360°

360°

360°

Basice motor powers                   (kW)

First Bottom Spindle

5.5 kW/7.5HP

5.5 kW/7.5HP

5.5 kW/7.5HP

Right side Spindle

5.5 kW/7.5HP

5.5 kW/7.5HP

5.5 kW/7.5HP

Left side Spindle　

7.5 kW/10HP

7.5 kW/10HP

7.5 kW/10HP

First Top Spindle

7.5kW/10 HP

7.5kW/10 HP

7.5kW/10 HP

Second Top Spindle

~~~~~

~~~~~

~~~~~

Second Bottom Spindle

7.5kW/10 HP

~~~~~

~~~~~

Universal spindle

7.5kW/10HP

7.5kW/10HP



Universal spindle rise & fall

0.18kW/0.25HP

0.18kW/0.25HP



Feed

5.5W/7.5HP

3kW/4HP

3kW/4HP

Feed beam rise & fall

1.1kW/1.5HP

1.1kW/1.5HP

1.1kW/1.5HP

Total motor power(KW)

55.28kW/74.25HP

47.78kW/64.25HP

37.78kW/50.75HP

Feed speed (m/min)

(Inverter )

6~30

6~30

6~30

Dust pipe diameter

(mm)

Ø150

Ø150

Ø150

Overall machine dimensions approx

(L×W×H)  (mm)

5090×1700×1800

4610×1700×1800

4290×1700×1800

Weight (tons approx) (T)

5.5

4.9

4.5



Note: Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time.

WMM23UA Series Universal Four-side moulder Outstanding character

 1.Inverter feed speed of 6~30m/min

2.Individual motor to each spindle to ensure maximum power transmission

3.High precision spindle units with two pairs of high precision bearings each end of the assembly

4. Universal spindle is equipped with 7.5KW power and rotates at 6000 rpm，Ability to adjust angle from 0-360°

5.All main spindle adjustments are carried out from outside the enclosure

6. Hard chromed treatment has been adopted for the durability of the work table surface.

7.Short piece driven top feed roller unit for greater feeding control around the right side spindle

8.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.

9.The first-stage pressing wheel and the short material device are equipped with a lifting cylinder, which can return and feed the material at any time according to the processing requirements.

10. Pneumatic in-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed .

11. Multi-group bottom driving roller to improve the feed effect .

12.Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness

13. Adjustable out-feed side pressure plate can meet the different thickness of material output steadily.

14.Manual bed lubrication to reduce friction and improve feeding difficult timbers

15.Adopting electric component from international class with steady quality

16.Sealed safety enclose to reduce noise levels, improve extraction and operator safety
