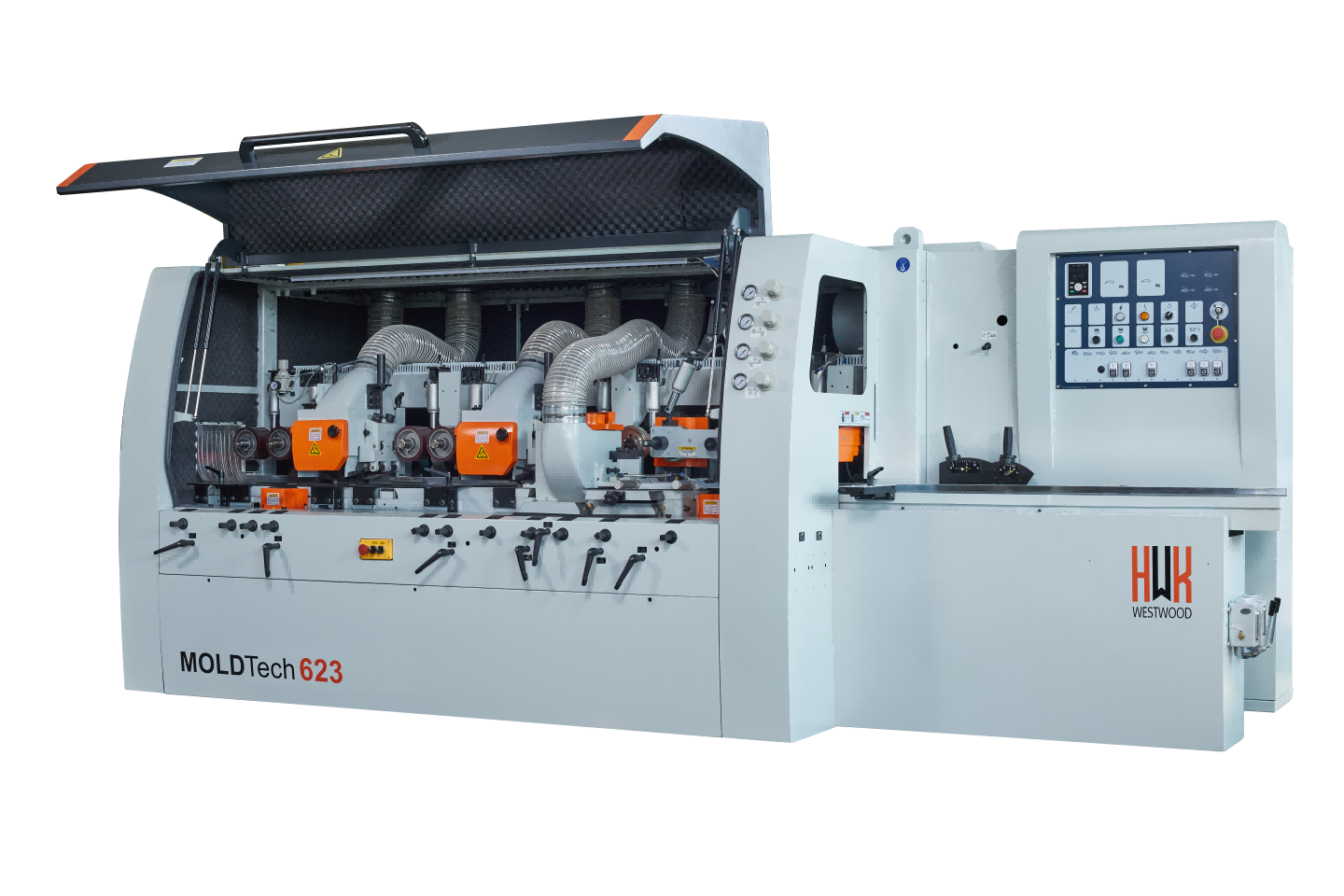

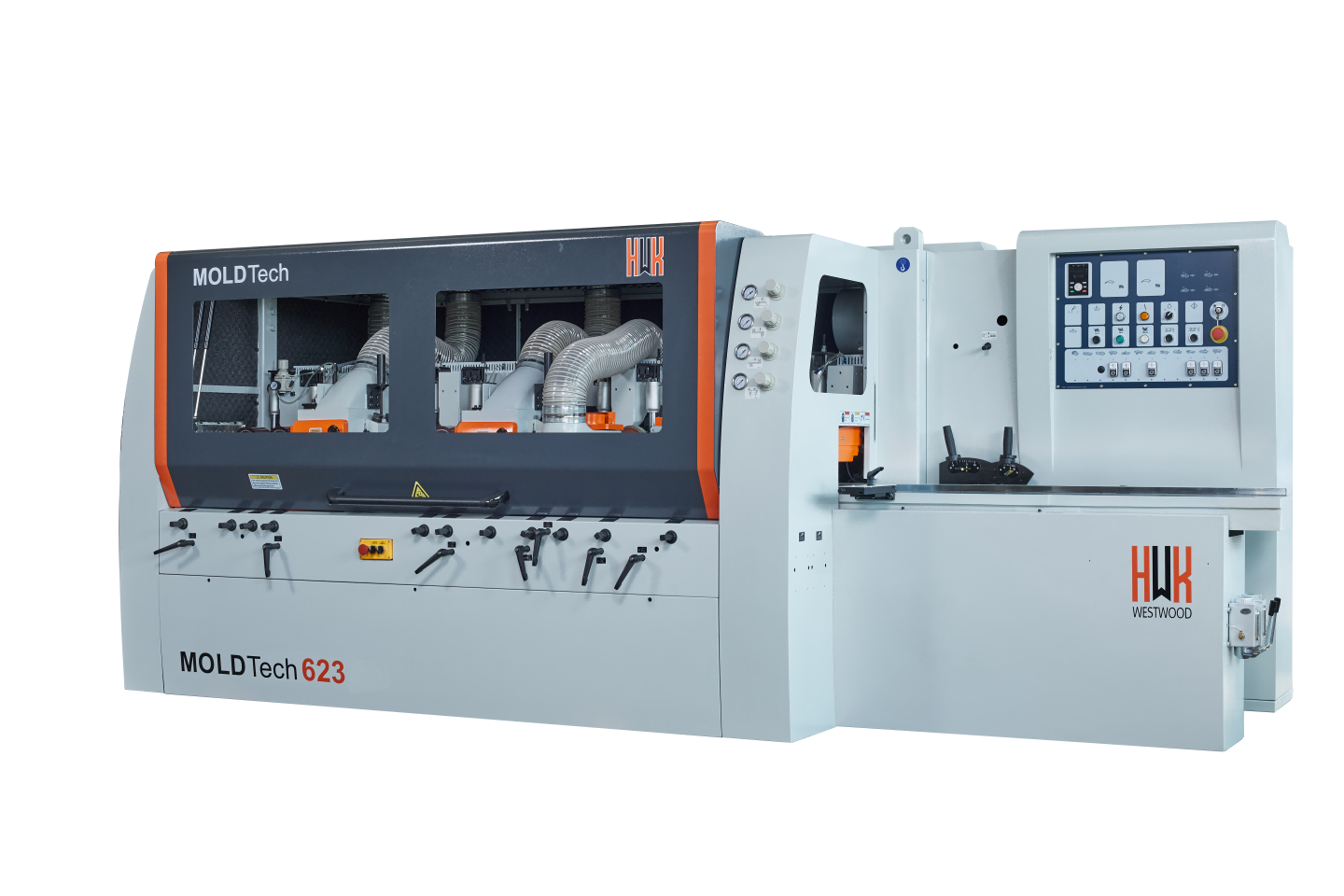

Four-Side moulder series M23A

Category: M23A

Model: WMM423A, WMM523A, WMM623A

1.Professional solution for processing hard wood strip, floor, doors and large cutting capacity strips.

WMM23A Series Four-side moulder

Specification & Type		WMM623A	WMM523A	WMM423A
Working Width (mm)	Min.	20	20	20
Working Width (mm)	Max.	230	230	230
Working Thickness (mm)	Min.	8	8	8
Working Thickness (mm)	Max.	135	135	135
Number of spindles		6	5	4
Speed of spindes(r/min)		6000	6000	6000
Cutting circles (min~max) (mm)	First Bottom Spindle	Ø110 ~ Ø145	Ø110 ~ Ø145	Ø110 ~ Ø145
	Right side Spindle	Ø110 ~ Ø180	Ø110 ~ Ø180	Ø110 ~ Ø180
	Left side Spindle	Ø110 ~ Ø180	Ø110 ~ Ø180	Ø110 ~ Ø180
	First Top Spindle	Ø110 ~ Ø180	Ø110 ~ Ø180	Ø110 ~ Ø180
	Second Top Spindle	Ø110 ~ Ø180	~~~~~	~~~~~
	Second Bottom Spindle	Ø110 ~ Ø180	Ø110 ~ Ø180	~~~~~
Spindle diameter (mm)		Ø40	Ø40	Ø40
Basice motor powers (kW)	First Bottom Spindle	5.5 kW/7.5HP	5.5 kW/7.5HP	5.5 kW/7.5HP
	Right side Spindle	5.5 kW/7.5HP	5.5 kW/7.5HP	5.5 kW/7.5HP
	Left side Spindle	7.5 kW/10HP	7.5 kW/10HP	7.5 kW/10HP
	First Top Spindle	7.5 kW/10HP	7.5 kW/10HP	7.5 kW/10HP
	Second Top Spindle	7.5 kW/10HP	~~~~~	~~~~~
	Second Bottom Spindle	7.5 kW/10HP	7.5 kW/10HP	~~~~~
	Feed	5.5kW/7.5HP	3kW/4HP	3kW/4HP
	Feed beam rise & fall	0.75kW/1HP	0.75kW/1HP	0.75kW/1HP
Total motor power(KW)		47.25kW/63.5HP	37.25kW/50HP	29.75kW/40HP
Feed speed (m/min) (Inverter )		6~30	6~30	6~30
Dust pipe diameter (mm)		Ø150	Ø150	Ø150
Overall machine dimensions approx (L×W×H) (mm)		4150×1670×1700	3670×1670×1700	3350×1670×1730
Weight (tons approx) (T)		4.2	3.6	3.2

Note: Any variation to the specification above mentioned will not be further notified since the product specification and design keeps on changing all the time.

WMM23A Series Four-side moulder Outstanding character

1.Inverter feed speed of 6~30m/min

2.Individual motor to each spindle to ensure maximum power transmission

3.High precision spindle units with two pairs of high precision bearings each end of the assembly

4.All main spindle adjustments are carried out from outside the enclosure

5. Hard chromed treatment has been adopted for the durability of the work table surface.

6.Short piece driven top feed roller unit for greater feeding control around the right side spindle

7.A group of side pressure wheels on the right side of the left spindle, adjusted the pressure flexible by pneumatic.

8.The first-stage pressing wheel and the short material device are equipped with a lifting cylinder, which can return and feed the material at any time according to the processing requirements.

9. Pneumatic in-feed bottom helical roller is more suitable for large deformation and high moisture of the wood to feed .

10. Multi-group bottom driving roller to improve the feed effect .

11.Pneumatic pressure loading to top feed rollers separately adjustable, for easy of feeding stock with variation in thickness

12. Adjustable out-feed side pressure plate can meet the different thickness of material output steadily.

13.Manual bed lubrication to reduce friction and improve feeding difficult timbers

14.Adopting electric component from international class with steady quality

15.Sealed safety enclose to reduce noise levels, improve extraction and operator safety
